Vector verification in Adobe illustrator to open in RDWORKS / Daniel - Rony

Vector verification in Adobe illustrator to open in RDWORKS / Daniel - Rony

So that you have no problem when importing a vector in RDworks this is the procedure you should do

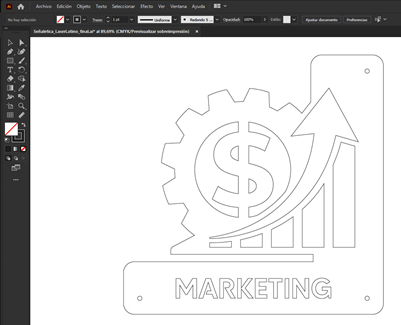

Make sure the vector is clean

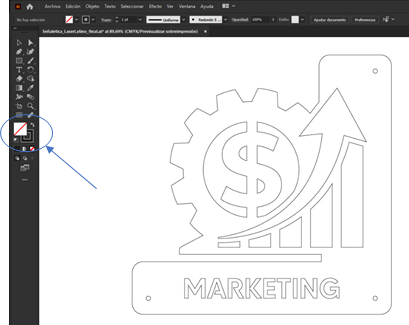

Make sure the vector has a transparent fill and outline color (stroke and no fill)

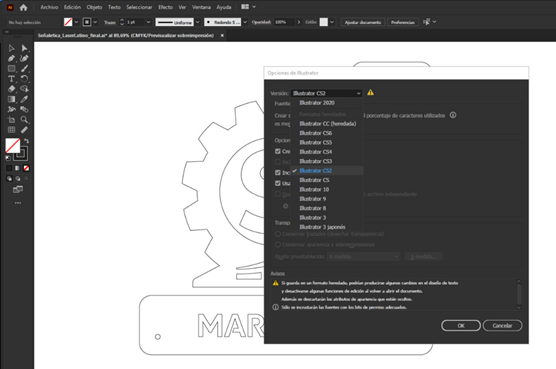

Save the vector as Adobe Illustrator version CS2

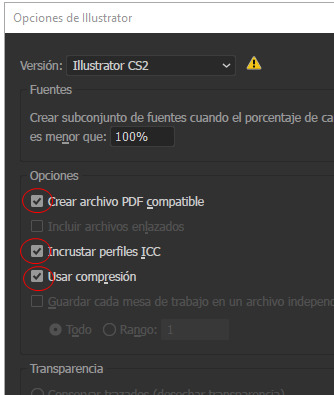

Activate these options

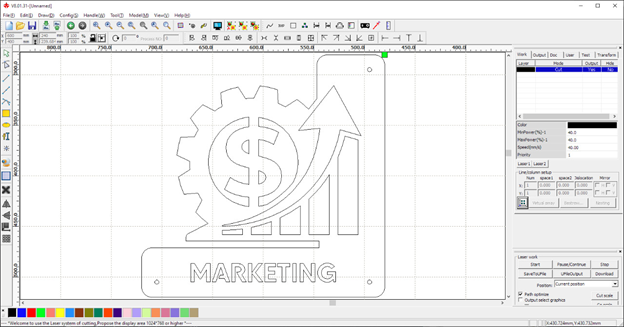

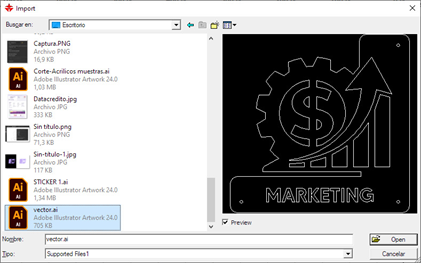

Open RDworks, Import the file in Ai format






TO EXPORT IN DXF FORMAT FROM ADOBE ILLUSTRATOR

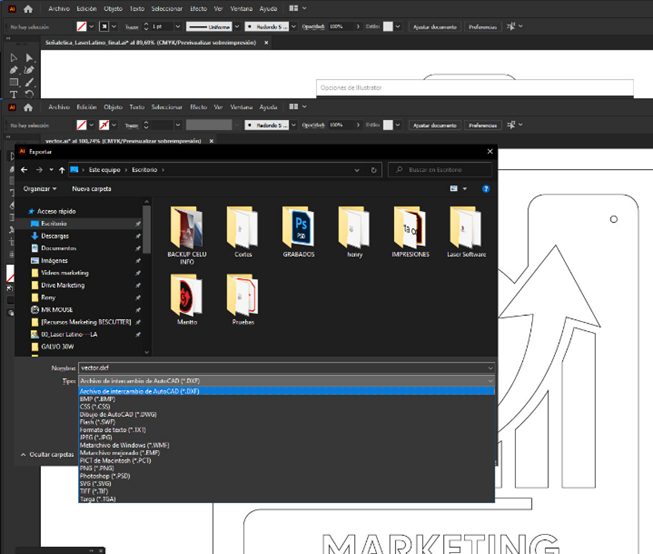

Export and choose the DXF format

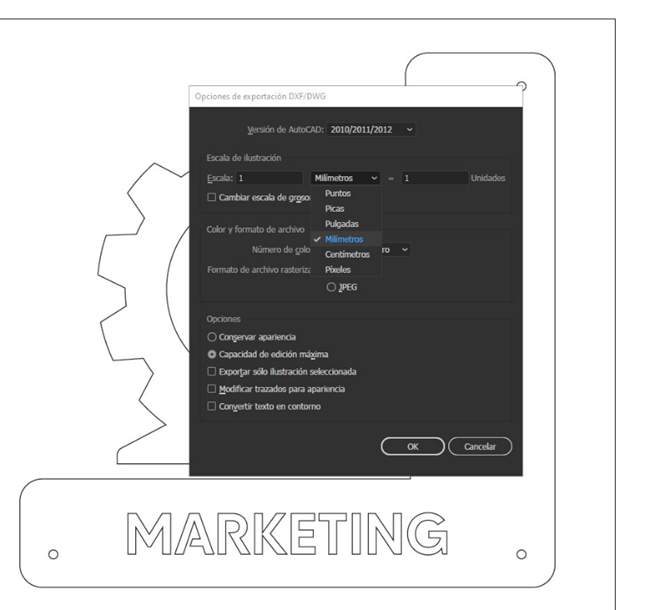

Choose mm

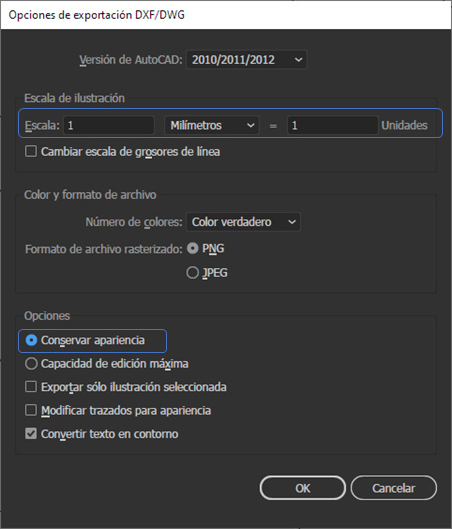

Choose the version of Autocad 2012, scale 1: 1 and activate in options keep appearance

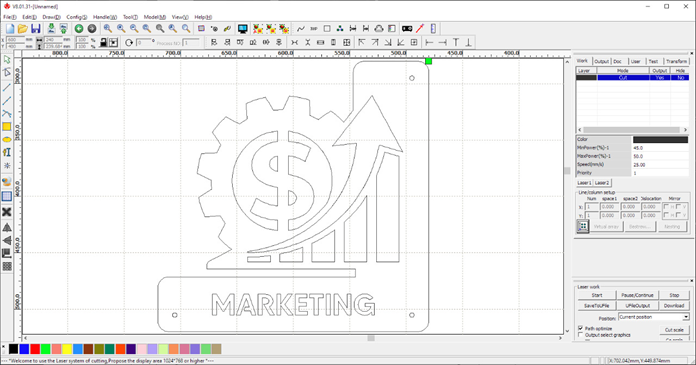

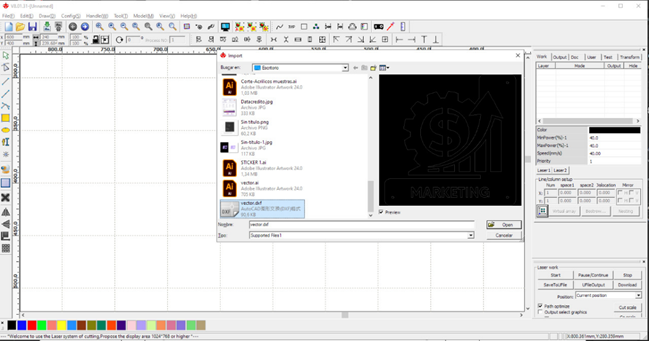

Open RDworks, Import the file in DXF format
