CONNECTION THROUGH A WIRELESS ROUTER   AND ETHERNET CABLE

For this connection, you need a wireless router that allows you to route the computer and the Ethernet connection of the Ruida board



STEP 1

Connect the computer to the router through the Wi-Fi connection by entering the router password and username


STEP 2

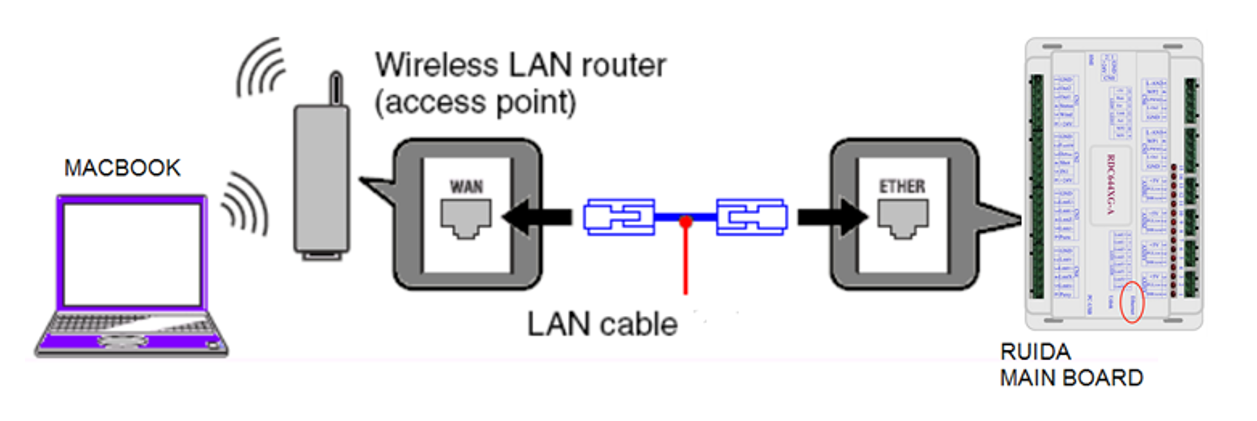

Connect one end of the UTP network cable to the Ethernet connection of the Ruida card and the other end to any LAN port of the router (not the internet input port) as shown in the following figure


Once you have the connection of our CO2 Cutting and Engraving Equipment that has a Ruida controller board through the Ethernet connection with an Ethernet Network cable with an RJ45 connector proceed to configure the IP Address






STEP 3.


Enter the configuration of the controller board on the operation panel and set the IP Address: 192.168.1.100






STEP 4.

we proceed to ping the address of the machine to see if there is a reply, open the DOS console by pressing start key + R on the keyboard, and type "cmd"

And put ping 192.168.1.100 and hit enter





STEP 5.  If there is no reply from the Machine IP, try to change the Change the Wi-Fi connection parameters to Static IP

To change the IP, do the following procedure:

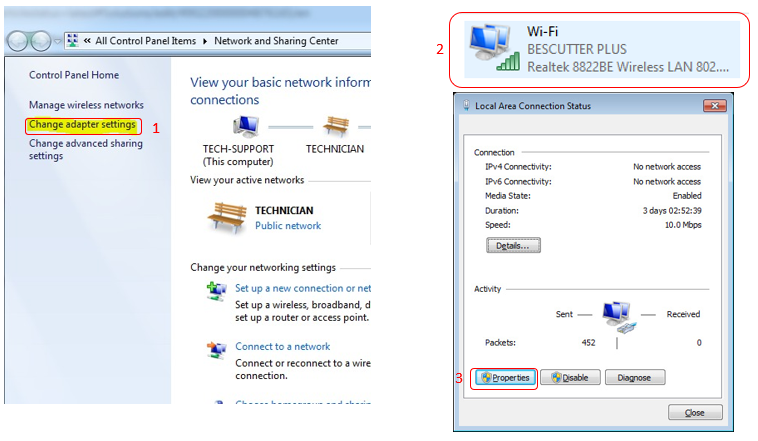

1. Go to control panel / Network and Internet / Network and Sharing Center/ configure the connection Wi-Fi connection, then press right-click and then select properties

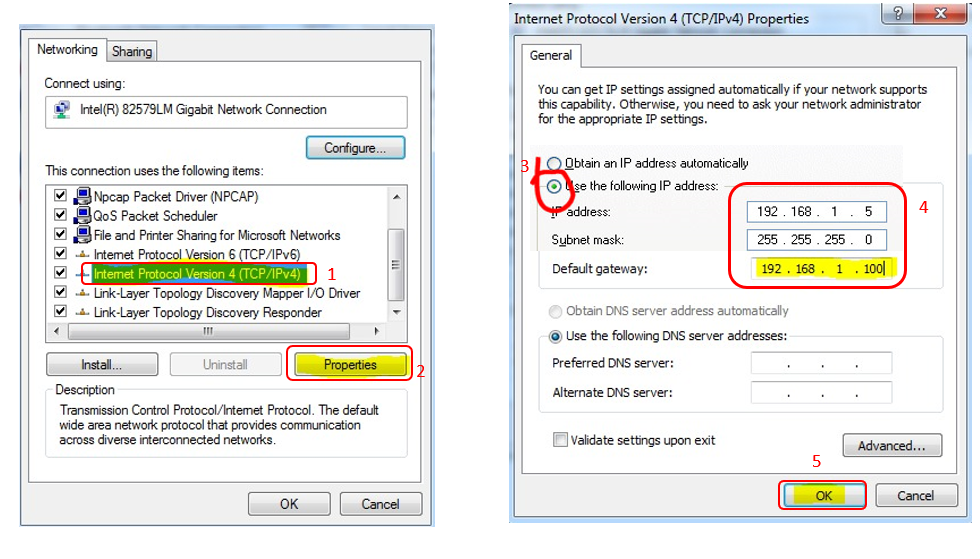

2. Set the same router address as an example you can set without generating IP conflict in (TCP / IPv4)

IP address: 192.168.1.5

Subnet mask: 255.255.255.0

Default gateway: 192.168.1.100

And finish with Ok





STEP 6


 Once the Static IP address is configured, we proceed to ping the address of the machine to see if there is a reply, open the DOS console by pressing start key + R on the keyboard and type "cmd"

And put ping 192.168.1.100 and hit enter





STEP 7


Once the pinging has a reply, the configuration is started in the RDWorks program, in the process control bar, click on Setting, then Add and select Web Port and type the IP address: 192.168.1.100 and then click on test, the Ruida board should appear in the box and finish by clicking OK






Once the configuration of the board is finished, you will have communication between the software and the CO2 engraving and cutting equipment.
