Cleaning the mirrors on a CO2 laser engraving and cutting machine / Daniel

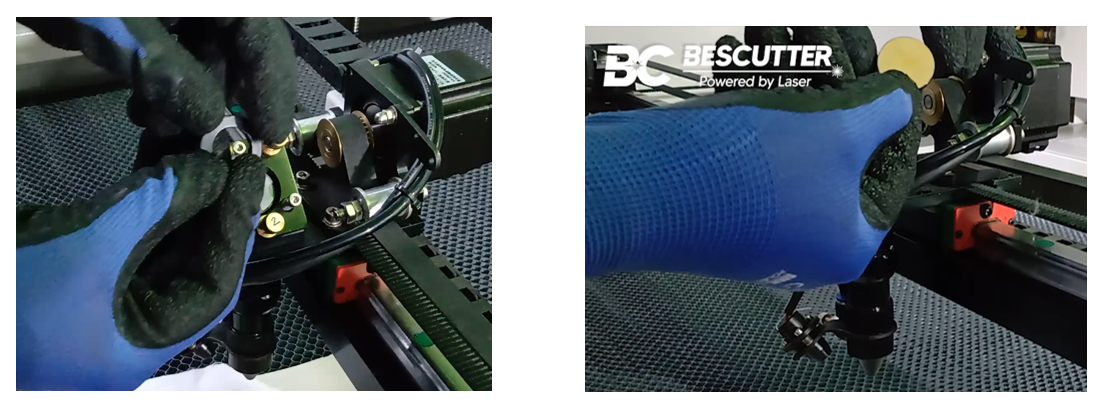

In the following video you can watch the procedure of changing or cleaning the mirror of a CO2 machine
To clean the mirrors of a CO2 machine, follow these steps:
Step 1

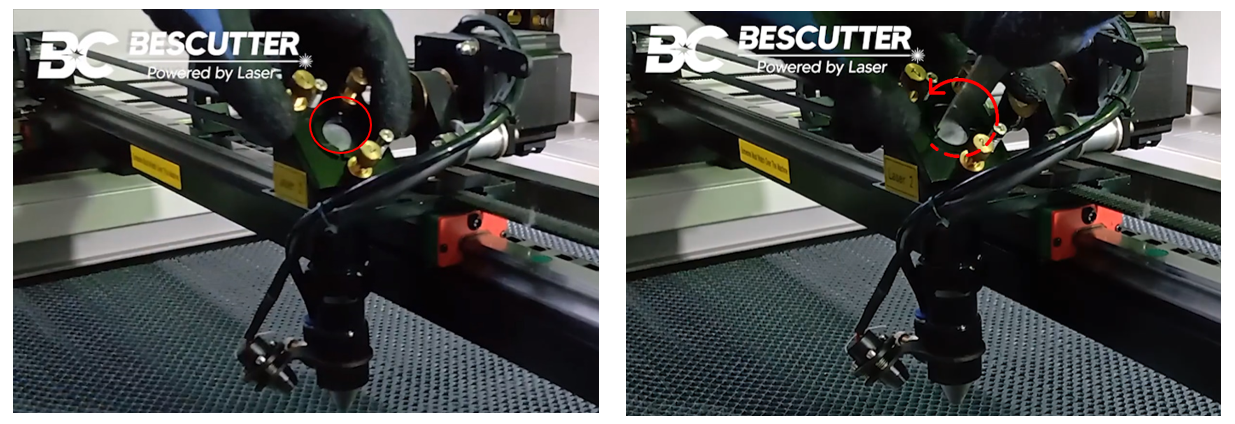

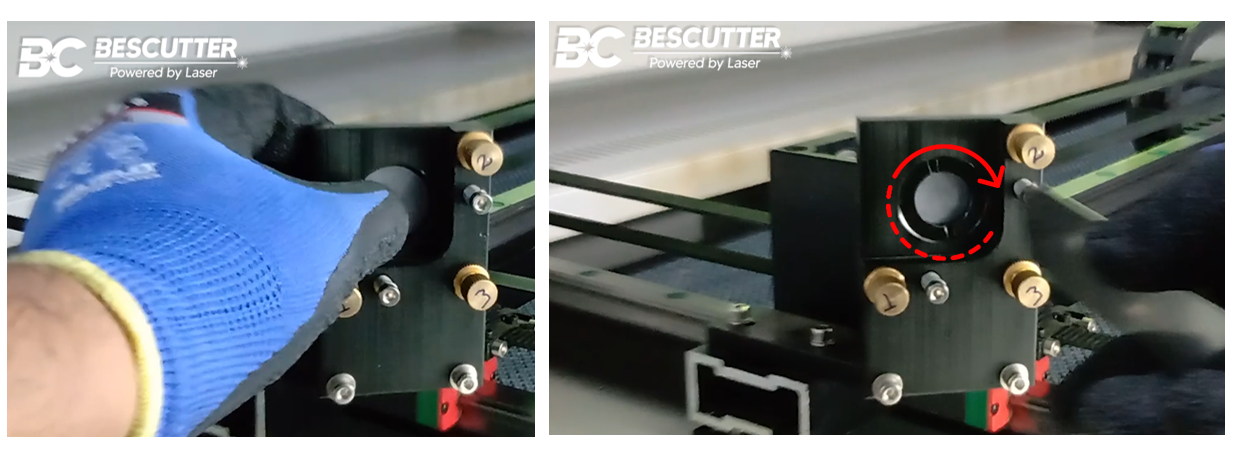

Identify the safety ring that holds the mirror located on the mirror support and with a metal tool, loosen it by turning counterclockwise
Step 2

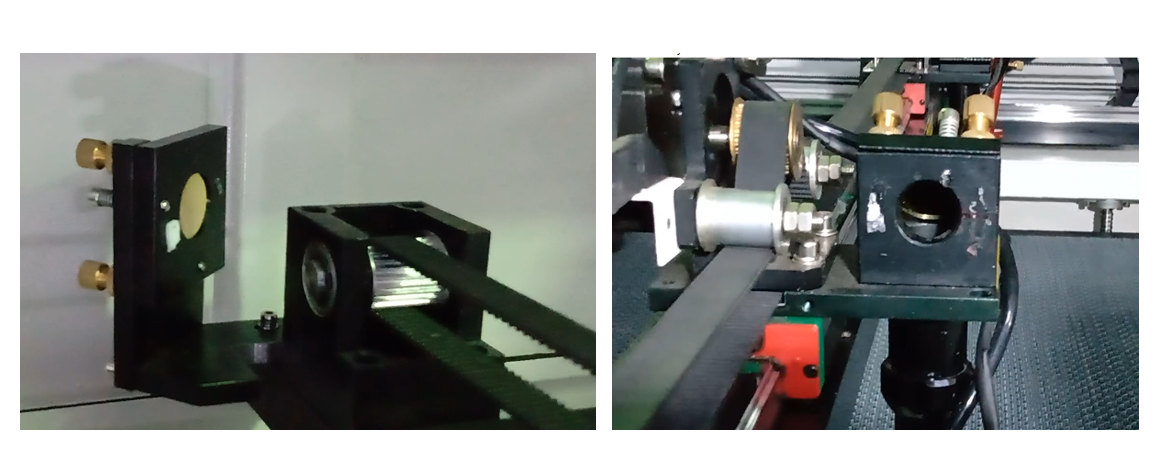

Remove the lock ring and carefully remove the mirror
Step 3

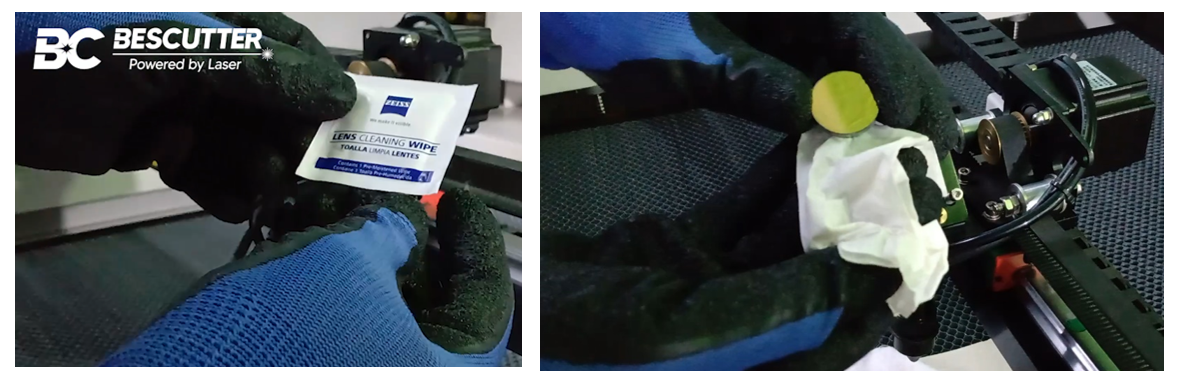

With a cleaning wipe, clean the shiny surface of the mirror.
Step 4
Once clean, Place the mirror with the opaque side facing the lock ring and secure it with the security ring by turning it clockwise
