Dual Max Laser Head´s Mirror screw movements / Daniel

• Related Articles

• Laser beam Alignment in Dual Max Machine / Daniel

  Laser beam Alignment in Versa Dual Max Machine First of all, you need to level the machine and both the glass and RF  laser tube,  next step is to calibrate the mirrors,   So in the next videos, we show you how to do it. Check the alignment in the ...

• How to move the mirror screws of a laser system? / Daniel

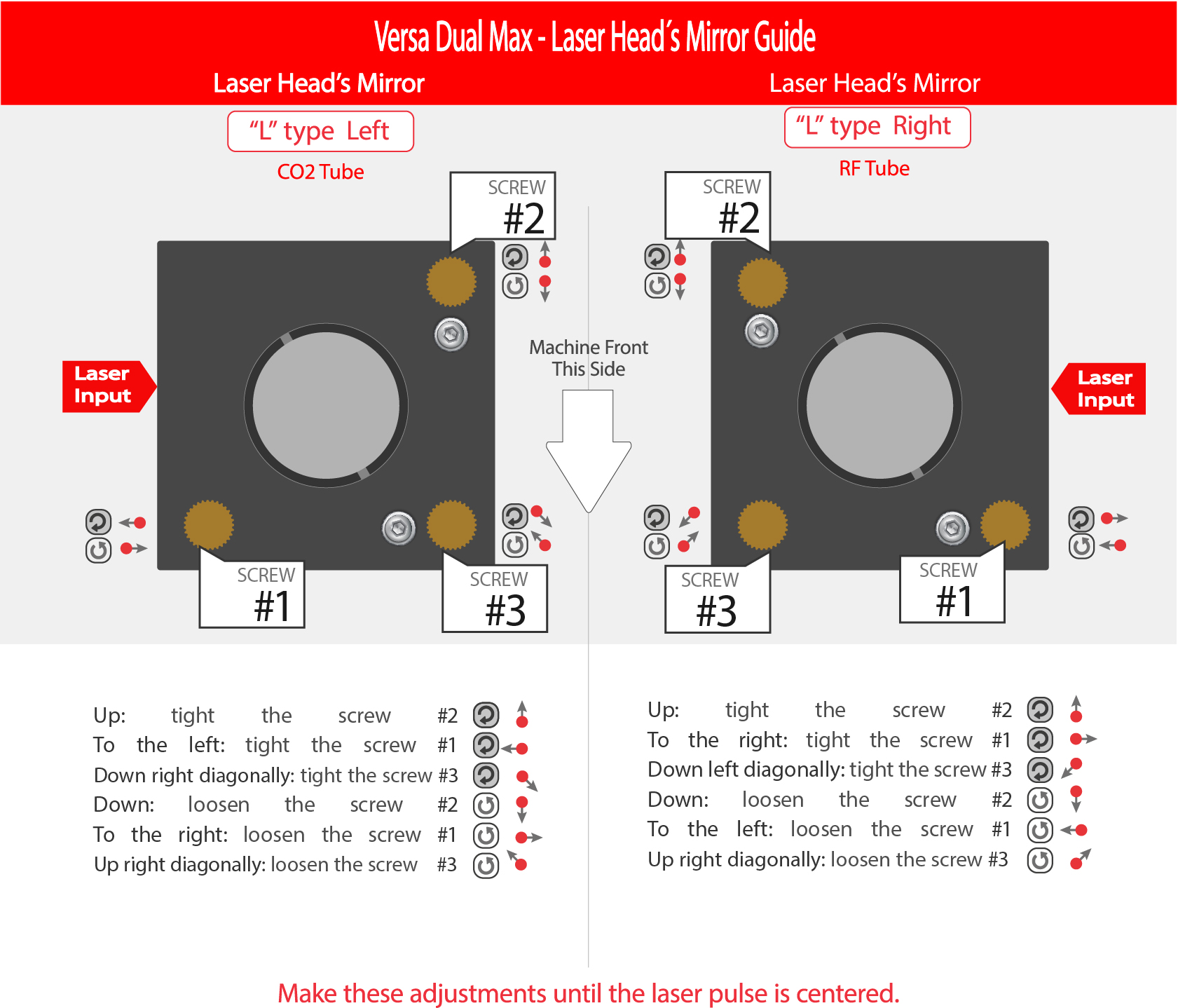

  Next, you will find an explanation on how to adjust the mirror screws to perform a successful calibration of the laser beam   https://www.youtube.com/watch?v=uScCkIyOl4o&t=5s The screws 1, 2 and 3 of the first and second mirrors can be moved in two ...

• Reflective Mirror Bracket Adjusment Screw Damage / Daniel - Ing Henry

  INTRODUCTION   The Reflective Mirror Bracket allows the adjustable part of the reflective mirror, aided by a mechanical system that includes 3 screws with millimeter thread, which can enter and exit depending on the need to adjust the angle of ...

• 00 - Check the mirror 3 to the nozzle alignment / Daniel

  To see how the calibration is, it should be noted that the laser beam mark is in the center of the nozzle outlet.  Set the maximum power to 10%, put transparent tape on the tip of the nozzle, and press the pulse button on the operation panel of the ...

• 0 - The laser beam mark should be in the center of the hole in the laser head / Daniel

  To see how the calibration is, we must observe that the mark of the laser beam is in the center of the hole in the laser head, if the two marks overlap but are above the center, it means that the height of the tube is above of the height of the laser ...
