IP configurations on Accu Star Fiber Laser Model / Engineer David

IP configurations on Accu Star Fiber Laser Model / Engineer David

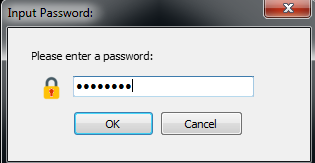

1. Open Config Tool and type the password "61259023"

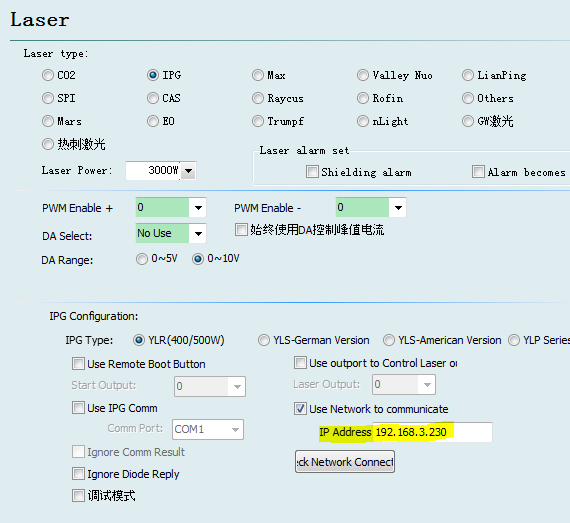

2. Press on "Laser" and set The IP to "192.168.3.230"



3. Press "Folower" and set the IP to "192.168.3.188"

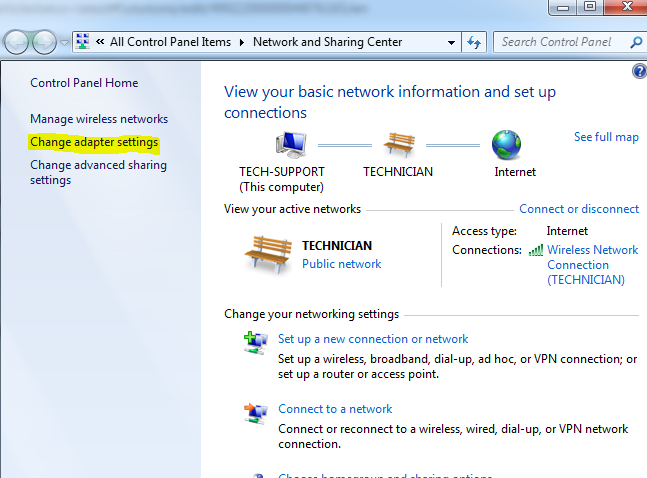

4. Go to the Network settings and press on "Change Adapter Settings"

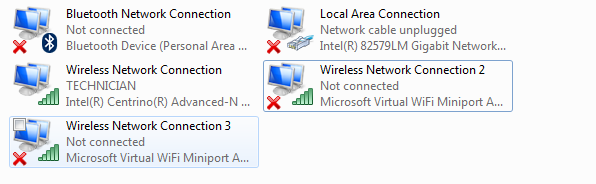

Select the Network of the machine and Press right click and then "Properties"

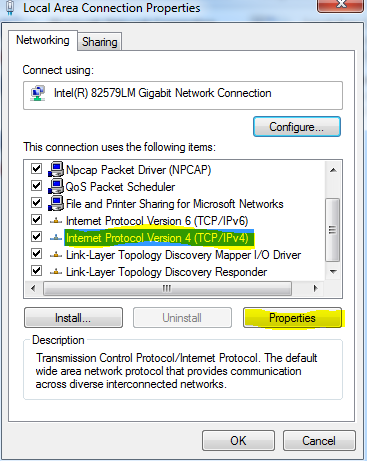

Then, select the "IPv4" as you can see in the next picture

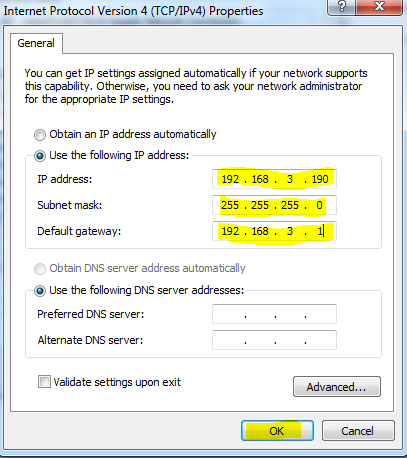

Then, set the following settings and press "OK"

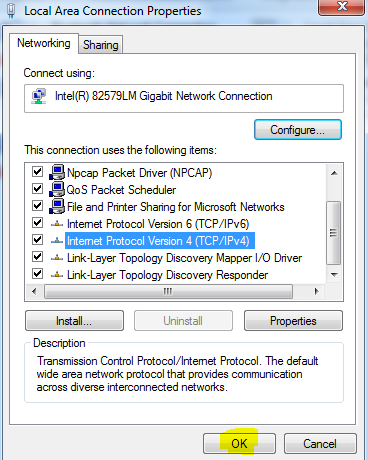

Finally, Press "OK"



5. Click on "Save"on the Cypcut and close it.





Fiber Laser Department
